Detailed Product Descriptionf

Processed material: PP,PS,PE,Recycled.
Max Output:PP:500Kgs/h.PS:650Kgs/h
Power consumption:180Kws/h appx
CE quality standard

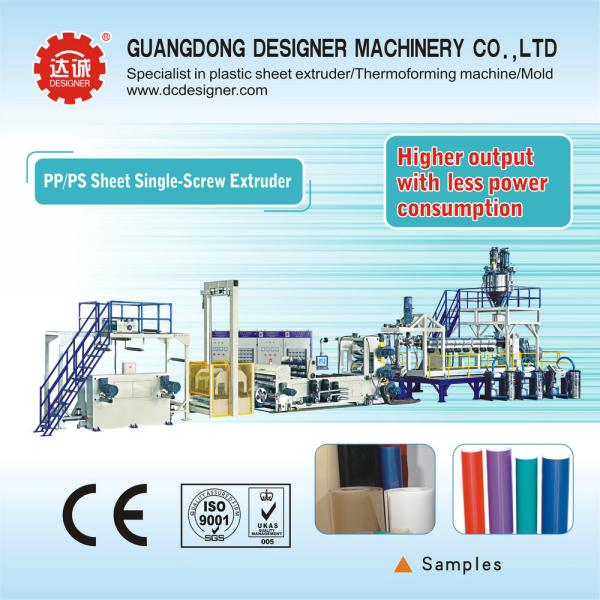

PP/PS sheet plastic extrusion machine with screw dia 120mm and max output PP 500Kgs/h LJP120-1000.

LJP120-1000 Parameters:

1.Famous brand standard A/C motor with AB speed inverter offers wide range smooth driving power.

2.Specially designed high efficiency screw nitrified with surface hardness HV≥860,suits for PP,PS,PE material and enables higher max output with less power consumption.

3.Casting Al heaters with air blowers automatically controlled by PID controlling system offers high precision heatings to barrels.

4:Hydraulic driven double position screen change enables easy mesh changing during production without stopping.

5.Gear gump with 2 sets of pressure sensors loop controlled by PLC guarantees very stable melted flow pressure for high quality sheets production request(For option).

6:Cloth hanger type structure T-Die with screw pull for thickness adjustment and width is adjustable.

7:L type calendering unit consists of 3 mirror rollers with surface roughness ≤0.025μm and centricity ≤0.005mm,adopted with Japan brand bearing,which guarantee sheet thickness variation ±0.01mm.Each roller is independently driven by high quality AC motor with AB speed inverter.(Horizontal type calendering unit for option)

8: PID automatically controlling system guarantees the surface temperature variation of rollers ±1°C.

9:Long national cooling unit with scrap trimmed allows sheet enough time to cool down and trimmed to requested width before taking off unit.

10:Taking off unit with scrap winding is driven by torque motor.

11:Multi-position winding unit allows max 800mm diameter roll winding(Automatical winding unit for option)

12:Whole machine is controlled by PLC and parameters are easy to be setted on touch screen.

13:Whole machine is produced according to CE standards and quality is controlled under ISO9001:2000 system.

Guangdong Designer Machinery Co., Ltd is a national high-tech enterprise, which engages in R&D, design, manufacture, marketing & services of plastic machinery. Located in the beautiful beach city-Shantou, the company was established in 1993, and now has 5 workshops of total over 40,000 m2 & more than 200 employees, including 50 medium and senior professional technicians.

The company specializes in R&D and manufacture of plastic machines. The main products are Plastic Sheet Extrusion Line, Thermoforming machine, Biodegradable Starch Sheet EXtruder, Packaging machine and Moulds.

The company owns a number of patents and technological achievements of independent intellectual property rights. The products has high technical content and strong practicability, and the quality is in the front ranks of Asia and receives good reputation among the customers.

The products sells well over China and are exported to South America, UK, Greece, CIS, Bulgaria, Egypt, South Korea, Taiwan, Thailand, The United Arab Emirates, Iran, Indonesia, Middle East, etc.

The company has established a long-term relationship with many famous enterprises, including Guangdong Strong Group Co., Ltd, Ting Hsin International Group (Master Kong), Fujian Qinqin Incorporated Co., Ltd, ZheJiang XinTianLi Packages Co., Ltd, Beijing Vary Packaging Co., Ltd, Chuo Kagaku Co., Ltd of Japan, Taiwan Uni-president Group, Pack & Proper Co., Ltd, Modern Cups Enterprise Co., Ltd, East Polypack Co., Ltd (Thailand), etc .

The company keeps the management concept of "being honest, being equal and customer first", and controls the quality of the products strictly under ISO 9001:2000 Quality Management System. The company has excellent equipment processing capacity (American HAAS AUTOMATION, Taiwan High Speed & High Accuracy Machining Center & CNC High Speed Engraving & Milling Machining Center, etc.) and efficient after-sale services, and also provides strong technical supports & trainings to the customers.
